Topic Metal-Air Batteries: Long-Run Discharge, Performance and Efficiency of Primary Silicon–Air Cells with Alkaline Electrolyte

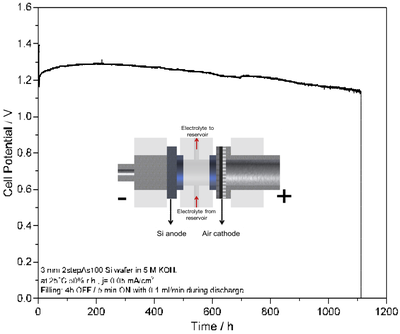

Most-recently developed primary silicon–air batteries are particularly promising because of both, superior volumetric energy density and resource efficiency. When operated with alkaline electrolyte, severe limitations of the discharge capacities were reported, which were attributed to a passivation layer on the anode. As a consequence, only small fractions of the surface from Si-anodes could be used for discharge. The objective of the present work is to reconsider the discharge behavior of Si–air cells with KOH electrolyte and to point out how a discharge process can be put forward until the complete anode is exhausted. Operating Si–air cells with alkaline electrolyte causes substantial corrosion, which produces also hydrogen gas as a reaction product. Moreover, along with the dissolution of Si in KOH, condensation of silicate structures in the electrolyte has been ob-served. Both effects accelerate electrolyte loss in the cell. Therefore, appropriately balancing the electrolyte supply of the Si–air cell is a precondition for ongoing discharge. Specifically, cells with As-doped Si-wafer anodes with 0.6 mm and 3.0 mm thickness were discharged in 5 M KOH electrolyte at current densities up to 0.05 mA/cm2 for 260 and 1100 hours, respectively. The drawback is that a minimum amount of electrolyte is required in order not to exceed 4 M Si content, which otherwise leads to a gelation of the electrolyte. Although a considerable fraction of the anode material is not transformed to electrical energy owing to corrosion, specific energies up to 140 Wh/ kg (for 1100 h) related to the total anode mass loss were realized.

Y.E. Durmus, Ö. Aslanbas, S. Kayser, H. Tempel, F. Hausen, L.G.J. de Haart, J. Granwehr, Y. Ein-Eli, R.-A. Eichel, H. Kungl, Electrochim. Acta 225 (2017) 215–224

Letzte Änderung: 28.04.2023
