3D Printers in Engineering & Design, PGI/JCNS-TA

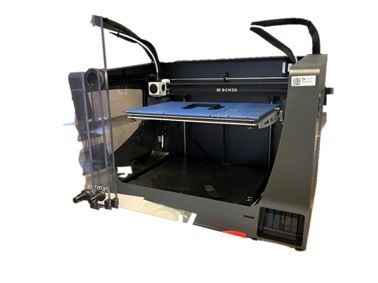

Filament printer BCN3D Sigmax R19
| Process: | FDM |
| Print range: | 400x290x200mm |
| Max. print temperature: | 280°C |
| Max. print bed temperature: | 100°C |
| Printable material: | ABS, PLA, PETG |
| Nozzle diameter: | 0,6mm |
| Recommended layer height: | 0,3mm |
| Scope: | Components with low demands on accuracy or tightness of fit (e.g. housings for electronic components) |
SLA-Drucker Elegoo Mars Pro
| Process: | SLA (LCD) |
| Print range: | 125x80x160mm |
| XY resolution: | 0,05mm |
| Layer height: | 0,01mm-0,2mm (standard 0,05mm) |
| Printable materials: | Formfutura heavy duty-resin, Elegoo ABS-like resin |
| Scope | Components and small batches with high accuracy, level of detail, density (liquid-tight) and load |

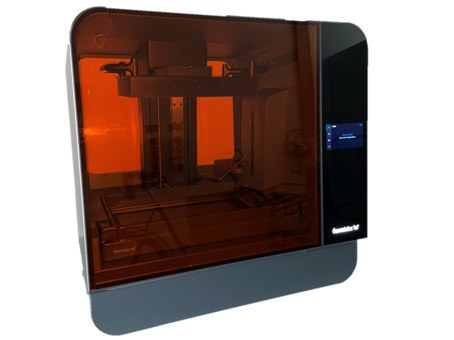

SLA-Drucker Formlabs Form 3L
| Process: | SLA (LFYS) |
| Fertigungsvolumen (B×T×H): | 335×200×300 mm |
| XY resolution: | 0,025mm |
| Laser spot size: | 0,085mm |
| Layer thickness: | 0,025–0,3mm |
| Printable materials: | Standard Resin (white, grey, black, clear), |
| Scope: | Larger components and small batches |
Form Wash und Form Cure zur Nachbearbeitung der LCD-/SLA-Druckteile
Contact:
Robert Swaczyna
PGI/JCNS-TA-Konstruktion
Tel.: 02461/61-4060
E-Mail: r.swaczyna@fz-juelich.de
Last Modified: 27.10.2025
