Within the Destination Earth (DestinE) air quality use case contracted by ECMWF, Forschungszentrum Jülich is developing a user interface for analyzing and forecasting air pollution. These simulations will explore the DestinE Digital Twin on Weather-Induced and Geophysical Extremes and result in an on-demand service. Jülich scientists therefore combine state-of-the-art regional and high-resolution chemical transport modelling applying the EURAD-IM with innovative machine learning applications that rest on open access databases of air quality observations (e.g. TOAR-II database) and atmospheric model data. The user induced access to air quality simulation has successfully been demonstrated basing on the novel conjunction of air quality data and in a remarkably high resolution. In an extension, simulations of emission scenarios allow the core users to assess local air quality in consideration of diverse potential mitigation strategies.
Background
Destination Earth is an initiative under the EU Digital Europe Programme to boost Green Deal actions on policies for climate change adaptation and geophysical extremes. ECMWF developed two digital twins for:
- Climate change adaptation
- Weather-induced and geophysical extremes
building digital replicas of the Earth system and generating high-quality simulations with unprecedented accuracy.
The DestinE air quality use case DE370C is developed in close cooperation with the German Environment Agency (UBA) and the North Rhine-Westphalia Office of Nature, Environment and Consumer Protection (LANUV) as core users.
Project run time
1 January 2023 to 30 April 2024

The Air Quality User Interface

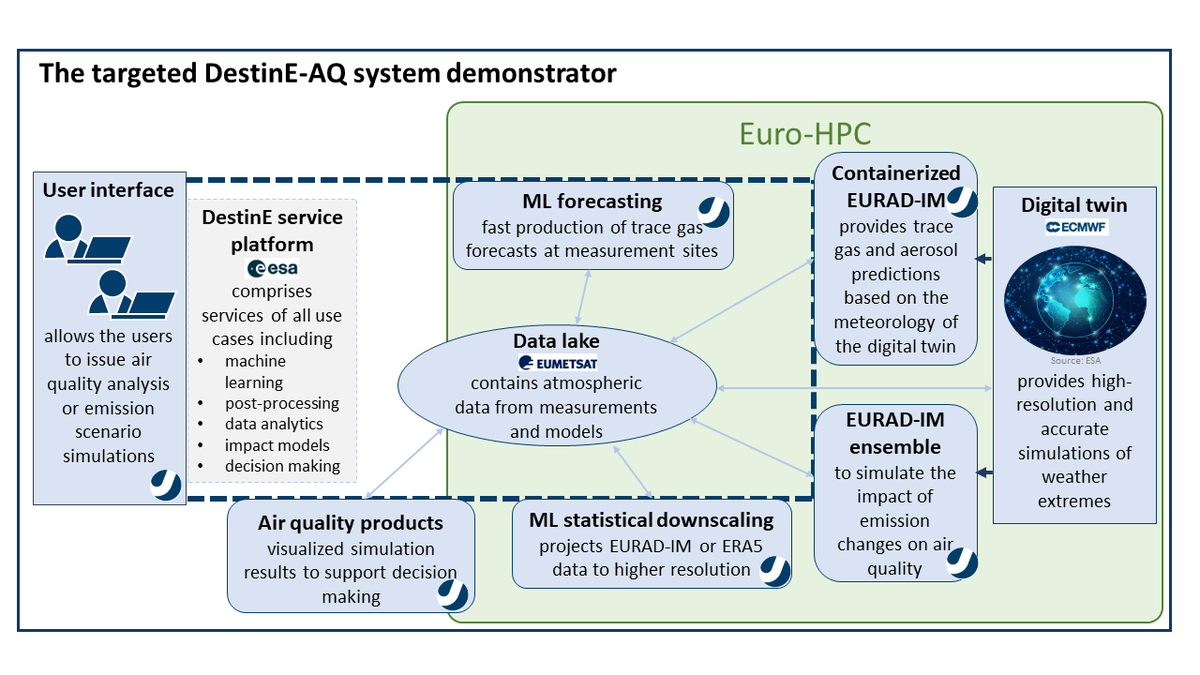

The DestinE air quality use case developed an interactive and web-based air quality forecasting system. From this user interface, users can execute high-resolution air quality forecasts for selected regions (field forecasting) or at the location of selected monitoring stations (point forecasting). Emission scenarios can be simulated by modulation of emission input data in different EURAD-IM forecast runs.

The simulations are executed on Euro-HPC systems (JURECA-DC at JSC and LUMI at CSC). The forecast results are provided as interactive map and timeseries visualizations. Coarser resolved field forecasts (3 km x 3 km) can be downscaled to a 1 km resolution based on a machine learning algorithm. For individual data analysis, all data is made available via a download option.
The Air Quality Use Case Demonstrator
Typical air quality extremes that often implicate an enhanced risk for health and environmental impacts are increased near-surface ozone or accumulated particle concentrations. For demonstrating the service and benefit of the DestinE air quality use case, two particulate matter episodes in January and February 2017 are selected as in parts of Europe, winter smog locally occurred. In polluted areas, high temperatures and strong irradiances induce high ozone concentrations. The high ozone episode in Germany in late July - early August 2018 has therefore been selected for additional demonstrator simulations. A third showcase episode of the air quality use case is planned and to be selected by coupling the air quality system to the operational DestinE Extremes digital twin.

In accordance with the area of interest of our core users LANUV and UBA all demonstrator simulations are made available for the target regions of Berlin-Brandenburg and North-Rhine Westphalia and entire Germany.
Emission scenario simulation options are currently predefined. The emission modulations are solely applied on the target regions to evaluate the potential of local air pollution mitigation strategies. The emission scenarios that are selected are:
- No-emission scenario: Simulation neglecting all anthropogenic emissions in the target domain.
- Home-office and energy saving scenario: Following the role model of the Covid-19 pandemic, road transport and residential emissions are reduced by 50 % and 20 %, respectively.
- Industry scenario: Restriction of industrial activities and reduction of power generation, industry, fugitives, and solvents emissions by 70 %.
- E-traffic scenario: Replacement of current car fleet by low-carbon emission vehicles. Diesel and gasoline emissions are reduced by 25 % and 80 %, respectively, while abrasion emissions are increased by 10 % due to expected increase in vehicular weight.
The Team
Project PI
Dr. Anne Caroline Lange
Senior Scientist Head of group "Air Quality and Emission Optimization"
- Institute of Climate and Energy Systems (ICE)
- Troposphere (ICE-3)
Room 2031
Expert on EURAD-IM air quality simulations, data assimilation, and emission scenarios
Project Co-PI
Sabine Schröder
Senior Scientific Programmer
- Institute for Advanced Simulation (IAS)
- Jülich Supercomputing Centre (JSC)
Room 338
Expert on data management, service development and maintenance
Dr. Philipp Franke
Senior Scientist Head of group "Air Quality and Emission Optimization"
- Institute of Climate and Energy Systems (ICE)
- Troposphere (ICE-3)
Room 3029
Expert on ensemble EURAD-IM air quality simulations, data assimilation, and emission scenarios
Dr. Elmar Friese
Senior Scientist
- Institute of Climate and Energy Systems (ICE)
- Troposphere (ICE-3)
Room 1040
Specialist on EURAD-IM air quality simulations , data assimilation, and workflow optimisation
Dr. Michael Langguth
Postdoctoral Researcher
- Institute for Advanced Simulation (IAS)
- Jülich Supercomputing Centre (JSC)
Room 4001
Specialist on machine learning and downscaling of atmospheric data
Prof. Dr. Martin Schultz
Head of research group Earth System Data Exploration and co-lead of division Large Scale Data Science, University professor in Computational Earth System Science at the University of Cologne.
- Institute for Advanced Simulation (IAS)
- Jülich Supercomputing Centre (JSC)
Room 4010
Expert on data science and deep learning methods to Earth System Data, i.e. weather, air quality and climate data
