Modular Glove Box

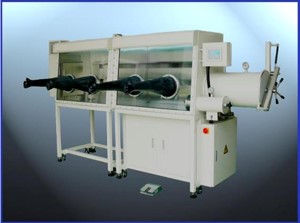

MB-200B Modular Glove Box Workstation:
The Glove Box Double Workstation is designed with the capability to add further box tops onto existing workstations. The Glove Box Double Workstation can also connect directly to your choice of any standard gas purification system. Like pieces of a puzzle the double glovebox system can be "pieced together" to form the solution for countless applications and system configurations. Systems incorporating Glove Box Double Workstation typically feature additional equipment ranging from laboratory instruments and deposition systems to fully automated processing lines.
Features:
- Modular box top
- All stainless steel construction
- Adjustable shelving
- Light hood with anti-reflection film
- Glove ports
- Polycarbonate window
- Castors for easy mobility
- Leveling feet
Specification:
Modular Glovebox Sizes
· Width: 1250mm, 1500mm, 1800mm, 2000mm
· Depths: 780mm, 1000mm, 1200mm
· Height: 900mm
Glovebox Specification
· Stainless steel 1.4301 (US Type 304) construction
· (4/5) DN 40 KF and electrical feedthroughs included
· Fine filter (1) gas inlet, (1) gas outlet, class H13
· Scratch resistant polycarbonate windows
· .4mm Glovebox gloves (optional glove sizes and material is available)
· POM 220mm diameter glove ports
· Fluorescent front mounted lamp
· Mini 1000mm length x 220mm depth stainless steel shelving
· Leak Rate <0.05 vol%h (acc. ISO 10648-2)
· Weight depends on configuration
