Shear cell

We built a searle-type shear device for highly viscous or gel like samples with the possibility to measure SAXS either perpendicular to the shear velocity plane along the gradient or along the shear velocity plane within one setup. The setup is designed with a small sample volume in mind so 0.5ml fill the gap completely. It is fully integrated into our SAXS setup with shear and temperature control. "

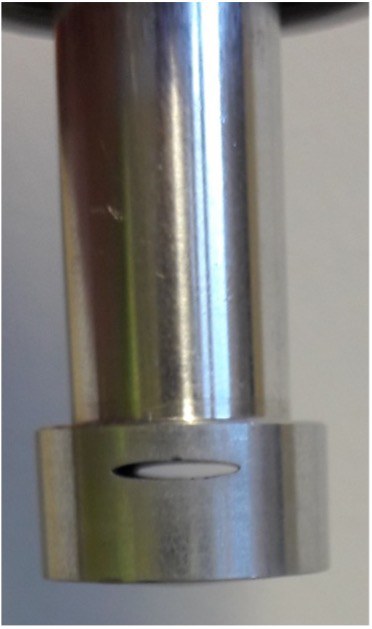

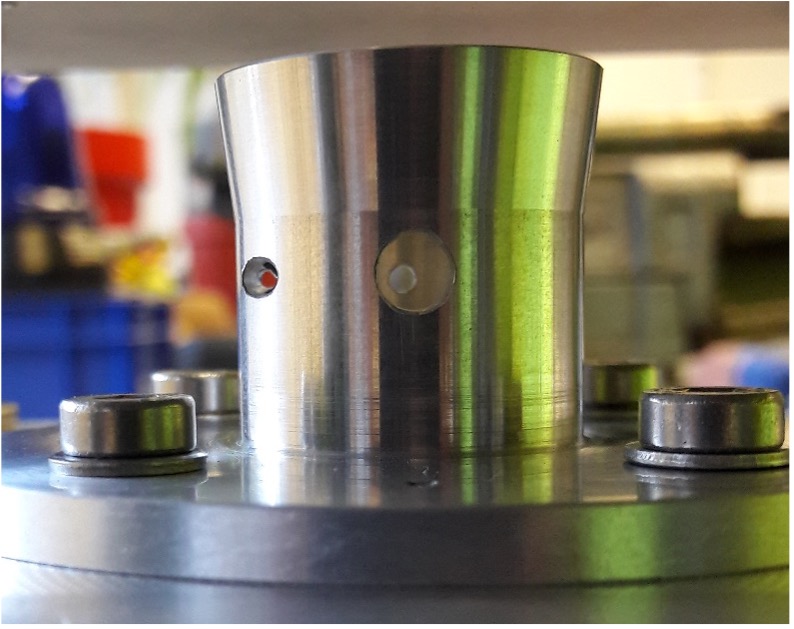

Shear cell

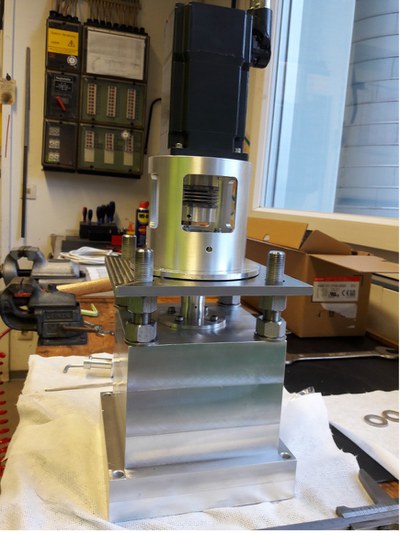

Whole setup
